Two Profiles Double Layer Roll Forming Machine With Chain Drive

Name: Two Profiles Double Layer Roll Forming Machine With Chain Drive
Brand: Shenghong
Price: 1 USD

Two Profiles Double Layer Roll Forming Machine With Chain Drive Manufactures

Brand Name : Shenghong

Model Number : SWL151226-216

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 25 SETS/ MONTH

Delivery Time : 40 days after payment

Packaging Details : 1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.

PLC Brand : Delta, Mitsubishi,Siemens,Panasonic

ZINC COATING : 60G / 80G / 100G / 120G / 150G

Width : 1000mm / 950mm / 1200mm / 1250mm

Thickness : 50 / 75 / 100mm

features : Decelerating motor and Chain drive

Customized : your drawings are welcome

Contact Now

Two Profiles Double Layer Roll Forming Machine With Chain Drive

Basic Information

Type: Rolling Machine

Forging Forming Method: Cold Roll Forming

Power Source: Electric

Feature: Automation

Certification: SGS, ISO9001, CE

Warranty:12 Months

Customized: Customized

Advantage: Use Widely

Condition: New

Controlling System: Mitsubishi PLC & Converter

Thickness of Raw Material: 0.3-0.7mm

Forming Speed: About 20-25m/Min

Main Motor Power: 7.5kw

Hydraulic Station Power: 5.5kw

Machine Size:12000*1700*1600mm

Suitable Material: Color Steel Sheet

Yield Strength of Material:235-345MPa

Export Markets:Global

Additional Information

Trademark: Shenghong

Packing: 1*20ft +1*40ft Container

Standard: CE SGS BV

Origin: China

HS Code: 84552210

Production Capacity: 25 Sets /Month

Technical parameter of double layer roll forming machine
Item		Specification
Raw Material	Type	Pre-painted steel coil & galvanized coils
	Thickness(mm)	0.4-0.7
	Yield strength(mpa)	235-345
Roller material		45# steel , coated with Chrome
Shaft for rollers		Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min)		About 15-20
Output speed(m/min)		About 10m/min.
Speed adjusting mode		Mitsubishi frequency transformer
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Nemicon Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		7.5KW
Total power(kw)		13 KW
Process flow		Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

2. Components of roll forming machine
Decoiler (manual decoiler and hydraulic decoiler for option)		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set
Run out table (auto. Stacker for option)		1set

Product Description

Double Layer Roll Forming Machine
Why choose this machine?
1. Can be Customized
2. ISO, CE, SONCAP certificate
3.12 months warranty, 24 hours online service, lifetime technical support
4. Design by senior R&D members who have 15 years experience in designing roll forming machine.
5. Electric elements: Mitsubishi PLC & transducer from Japan.
6. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
7. Well resisting active shaft: High grade No. 45 carbon wrought steel.
8. Cutter blade: Cr12 mould steel with quenched treatment
9. Precision: Shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
10. People originate: Introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
11. Technician can be sent to your factory to install the machine and train your workers

About double layer roll forming machine
1. Material: Color steel sheet
2. Yield strength: 235-345Mpa
3. Thickness: 0.4-0.7mm
4. Roll forming Speed: 15-20m/min.
5. Main motor power: 7.5Kw(Depend on final design)
6. Hydraulic station power: About 5.5Kw (Depend on final design)
7. Manual decoiler Max. Capacity: 5000kgs
8. Power 380V/3Phase/ 50Hz

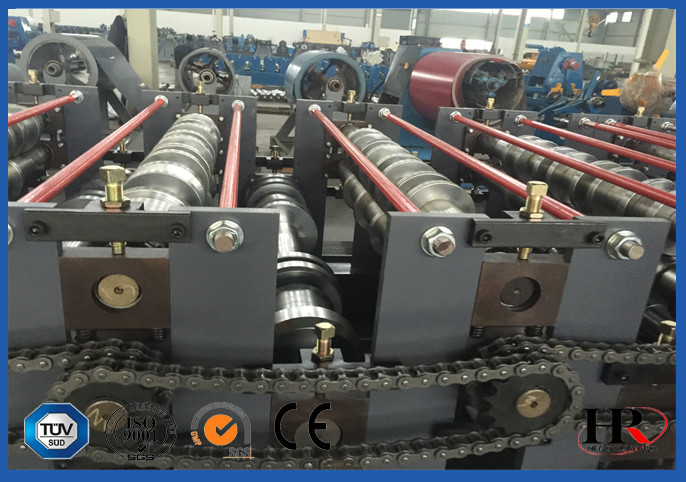

Machinery Shows

Two Profiles Double Layer Roll Forming Machine With Chain Drive

Workshop Show

Two Profiles Double Layer Roll Forming Machine With Chain Drive
