Pre-punching Z Shape Cold Roll Forming Machine With Changeable Feeding Width

Name: Prepunching Z Shape Cold Roll Forming Machine With Changeable Feeding Width
Brand: Shenghong
Price: 1 USD

Pre-punching Z Shape Cold Roll Forming Machine With Changeable Feeding Width Manufactures

Brand Name : Shenghong

Model Number : SWL151209-13

Certification : CE ISO

Place of Origin : China, Jiangsu

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T

Supply Ability : 30 SETS/ MONTH

Delivery Time : 40 days after payment

Packaging Details : Container

Profile : 100-250mm

Purlin : Steel strip

Specification Type : Standard Configuration; low configuration; High configuration

Main Power : 15 KW

Controls : mitsubishi transducers, Schneider Electric, PLC

Roller : Antirust Treatment

hydraulic systems : 10-12Mpa

Yield Stress : 230-300; 300-350

Contact Now

Pre-punching Z Shape Cold Roll Forming Machine With Changeable Feeding Width

1. Technical Parameters

Material specification	galvalume, galvanized steel and carbon steel.
Thickness	1.0mm to 2.5mm.
Main motor power	15 kw.
Hydraulic station power	5.5 kw.
Feeding width	changeable.
Cover width	changeable.
Yield stress	235Mpa(33KSI) ~ 345Mpa (50KSI).
Roll forming Speed	12 m/minute.
Cutting Tolerance	+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).
Manual Uncoiler	Max. Capacity: 3000kgs.
Coil inner diameter	508mm.
Voltage	As per customer’s request.
Numbers of stands	17 stands/stations/pairs.
Type of cutting	Roll-formed and length-set profile cutting.

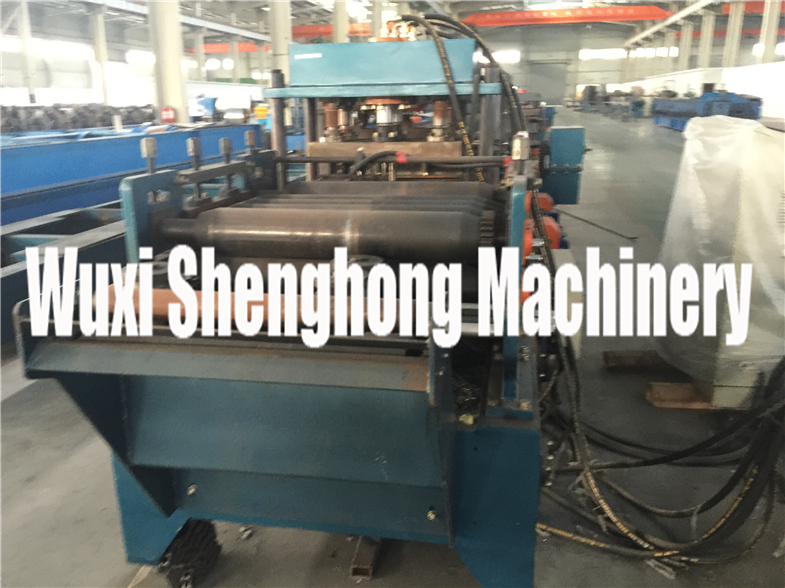

2. Components of C Z Purlin Roll Forming Machine

The roll forming machine includes 4tons manual uncoiler unit, sheet guiding equipment, straightening device, pre-punching device, roll forming system, cutting equipment, hydraulic station, electric controlling system(PLC) and run out supporting table.
Pre-punching Z Shape Cold Roll Forming Machine With Changeable Feeding Width

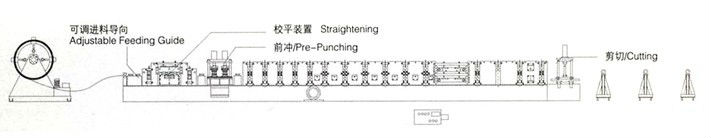

3. Process sketch

Uncoiling the sheet --- Infeed guiding --- Straightening --- Pre-punching --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).

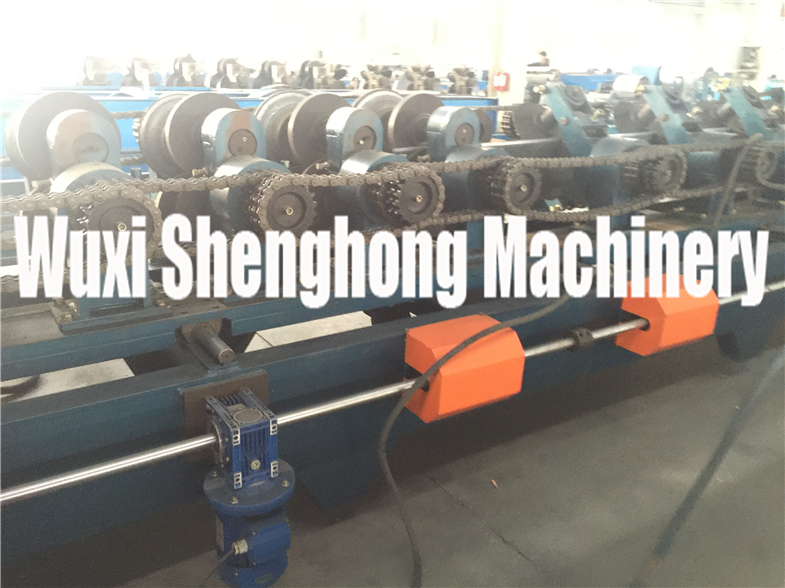

4. Material of Main Equipment

Roller Material	GCr15 bearing steel, with quenching treatment.
Active Shaft Material	High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft.
Electric Elements	PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China.
Cutter blades	Cr12 mould steel with quenched treatment.

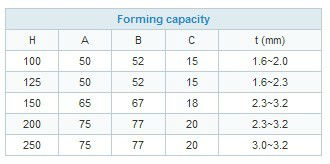

5. Specification
Pre-punching Z Shape Cold Roll Forming Machine With Changeable Feeding Width

6. Series Design of Product

Machinery Show

Workshop Show
